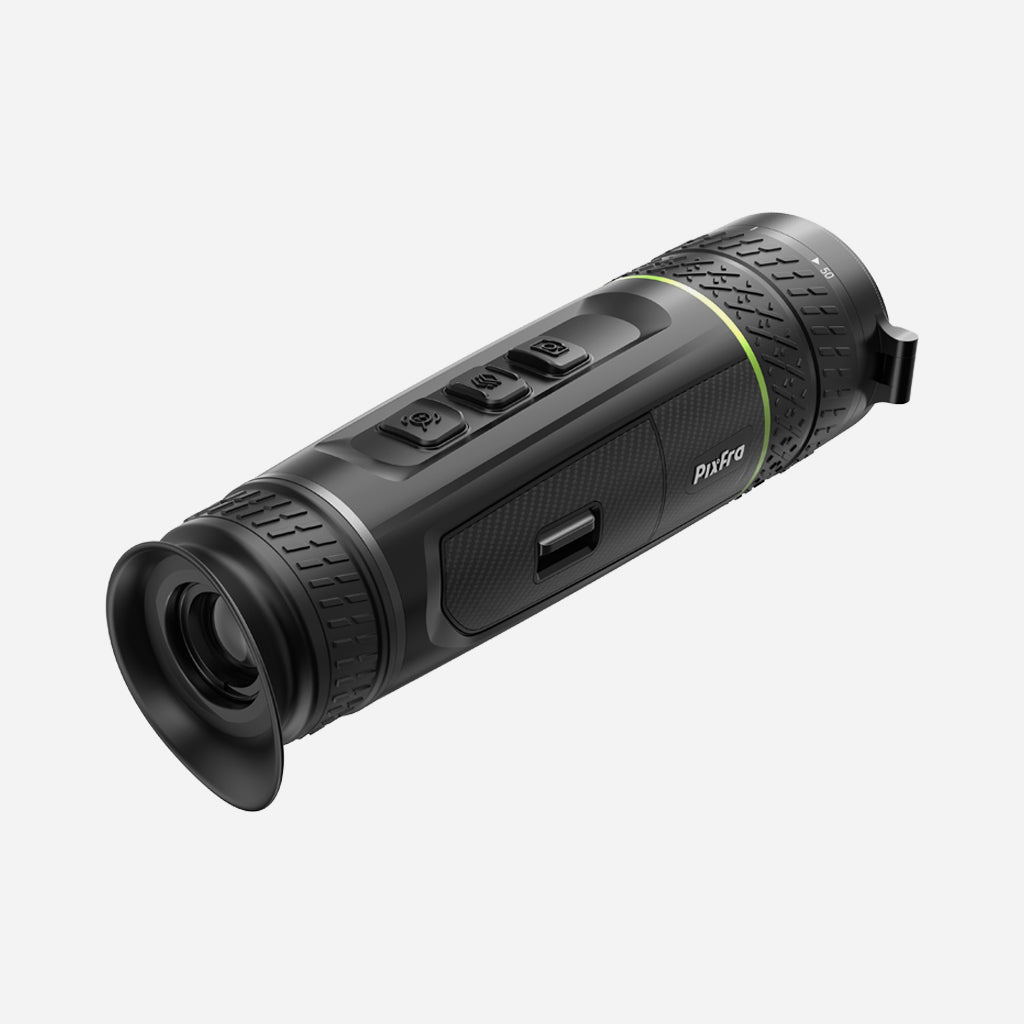

Pixfra Sirius S650D 18mK Thermal Imaging Monocular

Meet the NEW Pixfra Sirius S650D, a serious thermal imager equipped with a 640x512, 12 μm, 18 mK NETD thermal sensor and dual-FOV system including a combination of F0.9 and F1.1 large aperture lenses.

High Performance Thermal Vision

Elevating thermal imaging with the PIPS 2.0 processing system this cutting-edge technology combined with Pixfra's cohesive lens and sensor design ensures a superior thermal experience that surpasses conventional standards, offering users an unprecedented level of accuracy and reliability from the Sirius.

Experience Dual View Versatility

Unique to the Sirius S650D experience dual-view versatility, offering a seamless shift from a 25mm scan to a 50mm close-up with continuous zoom increments, all without re-focusing the image. This essentially gives you, the user the functionality of two thermal imagers in a single device, meeting the needs for long range observation alongside wide-FOV vision for wildlife observation all at once.

HD OLED Display with Comfortable Viewing

Highlighted by it's 0.49-inch dispay with a 1920x1080 OLED resolution the enhanced display delivers a viewing experience that's second to none, offering a comfortable and clear vision that brings distant scenes to life with vivid clarity.

New Signature Design

Step into a legacy of design with Pixfra's side power key. Complimented by a crystal breathing light, the power button offers 5-level brightess levels which gives a subtle indication of the devices status.

The lens's X-marked focus ring allows for easy focus adjustment in both dry and wet weather conditions, complimented by carbon fiber accents the Sirius is a pleasure on the eye and a pleasure to handle.

Reliable Single-Handed Control

Featuring a classic three-key layout the Sirius by Pixfra is designed for reliable one-handed operation. It's comfortable shape and lightweight design ensures a pleasant grip for extended outdoor adventures, highlighting Pixfra's commitment to user-friendly functionality.

Quick-Change Battery

Chaging a battery has never been easier - with a simple touch the side located battery cover pops open, letting you quickly swap the rechargeable lithium battery, locking securely back into place with a gentle push, making every use smooth and dependable.

Equipped with Metal Lens Cover

The included metal lens cap offers a robust protection of the thermal lens guarding against dust, scratches and impacts. The durable cover is designed to ensure longevity and clarify of the optical experience.

All-Day Comfort with Colour Palettes

As expected with any Pixfra device the Sirius offers a suite of six comfortable colour palette options designed to meet the needs of all-day use and personal preference between white hot, black hot, iron red, alarm, emerald and amber.

Features

• Vanadium oxide uncooled focal plane detector

• Dual-FOV lens
• Ergonomic buttons layout

• Crystal breathing power button

• Carbon fiber decorative texture design

• FHD OLED display

• Replaceable 18650 battery

• High optical magnification

• Connects to the mobile app through Wi-Fi

• Six colour palettes

• Built-in 64GB

• IP67 rated

Specification

Thermal

• Thermal Sensor: 640×512, 12 μm

• Spectral Range: 8 μm – 14 μm

• Sensitivity (NETD): ≤18 mK

• Focal Length (Lens): 25mm; 50mm

• Aperture: F0.9 (25mm); F1.1 (50mm)

• Field of View: H: 17.9°; V: 14.2° (25mm); H: 8.8º, V: 7.0º (50mm)

• Focus Control: Manual

• Close Focus Distance: 2m (25mm); 8m (50mm)

• Detection Distance: 1300m (25mm); 2600m (50mm)

• Recognition Distance: 331m (25mm); 662m (50mm)

• Identification Distance: 166m (25mm); 331m (50mm)

• Magnification: 1.72× (25mm); 3.45x (50mm)

• Frame Rate: 50 Hz

Display

• Screen: 1920×1080, 0.49 inch, OLED

• Color Palettes: 6 (white hot/black hot/iron red/alarm/emerald/amber)

• Video Compression: H.264

• Diopter: –5D to +3D

• Eye Relief: 15mm

• Exit Pupil: 8mm

Function

• Digital Zoom: 1×, 2×, 4×, 8×

• Video Recorder: Yes

• Snapshot: Yes

• Wi-Fi Hotspot: Yes

• Hot Spot Track: Yes

• FFC Calibration: Auto, Manual, External Correction

• Standby Mode: Yes

• DPC (Defective Pixel Correction): Yes

• MIC: Yes

• Compass: Yes

• Storage: Built-in 64GB

Power

• Battery Type: Replaceable 18650 battery

• Battery Life: <6 hrs

• Power Supply: 5 VDC/2A

• Port: USB Type-C

• Overvoltage Protection: Yes

General

• Operating Temperature: –30 °C to +55 °C

• Operating Humidity: ≤95%

• Protection Grade: IP67

• Packaging Dimensions: 291mm × 140mm × 127mm

• Product Dimensions 223mm × 61mm × 71.4mm

• Gross Weight: 1.31 kg

• Net Weight: 573g

What you get

• Pixfra Sirius S650D
• Rechargeable 18650 Battery (x2)
• Battery Charger
• USB Cable
• Carry Case
• Bag Strap
• Neck Strap
• Wrist Strap
• Lens Cleaning Cloth
• User Manual
• Warranty Card

Warranty

This comes with a 3 year warranty from Pixfra. See the User Manual that comes with the Pixfra Sirius.
